Endress Hauser transmitter Liquisys CLM253-CD0005

SPECIFICATIONS

Measuring principle:Conductive

Application:Water, waste water, process

Characteristic:4-wire transmitter with a two-line display

Design:Conductivity transmitter in a PC/ABS-field housing

Material:PC/ABS

Dimension:247x170x115 mm

Temperature sensor:Display and current output

Ex certification:No

Ingress protection:IP65

Input:One-channel transmitter

Output / communication:0/4-20mA, Hart, Profibus.

Additional certifications:CSA Gen. Purpose.

Field of application
Liquisys CLM253 is a standard transmitter for all analog conductivity sensors. It improves your operational safety thanks to continuous plausibility, process and sensor checks. Select from numerous hardware and software modules, such as relays or fieldbus communication, to adapt it exactly to your measuring task. This modularity also allows you to upgrade the transmitter at any time. A simple menu and calibration make configuration and operation fast and easy.

The Liquisys CLM253 transmitter works with all analog conductivity sensors in non-hazardous areas, for example in these industries and their utilities:

• Chemicals
• Food & Beverages
• Life Sciences
• Power & Energy
• Water &Wastewater
• Primaries & Metal

Liquisys CLM253 features the following protocols and interfaces:

• 0/4...20 mA
• HART
• PROFIBUS DP
• PROFIBUS PA

Benefits

More operational safety: Continuous process check system, customized alarm configuration, calibration plausibility check.

Reliable oxygen control: Current input for flow rate monitoring with controller shut off or for feedforward control.

Easy to operate and service: Simple single-point calibration in air, air-saturated water or in the medium, direct access for manual contact control.

Reduced maintenance: Automatic cleaning function (with Chemoclean) triggered by alarm or limit switch.

Fit for every application: Numerous extensions, e.g. P(ID) controller, timer, etc., allow for flexible adaption to all processes.

Related Part Number:

Conductive Endress Hauser Instruments

PC ABS Endress Hauser Instruments

Liquisys CLM253 - CD0005

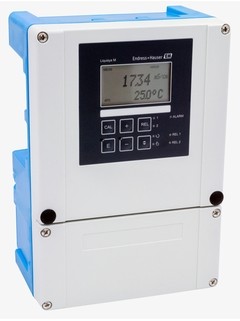

Endress Hauser Liquisys CLM253 Conductivity Transmitter PC ABS Housing Images
